The id(s) for emsiles = N#[Eu] theory{pspw4} xc{pbe} basis{100.0 Ry} solvation_type{None} ^{0} mult{7} are: 78479
Use id=% instead of esmiles to print other entries.
mformula = Eu1N1
iupac = N#[Eu] septet radical
PubChem =
PubChem LCSS =
Search Links to Other Online Resources (may not be available):
- Google Structure Search
- EPA CompTox Database
- Chemical Entities of Biological Interest (ChEBI)
- NIH ChemIDplus - A TOXNET DATABASE
- The Human Metabolome Database (HMDB)
- OECD eChemPortal
- Google Scholar
+==================================================+
|| Molecular Calculation ||
+==================================================+
Id = 78479
NWOutput = Link to NWChem Output (download)
Datafiles:
lumo-beta.cube-241077-2023-9-20-3:37:2 (download)
lumo-alpha.cube-241077-2023-9-20-3:37:2 (download)
density.cube-241077-2023-9-20-3:37:2 (download)
homo-alpha.cube-241077-2023-9-20-3:37:2 (download)
homo-beta.cube-241077-2023-9-20-3:37:2 (download)
image_resset: api/image_reset/78479
Calculation performed by Eric Bylaska - arrow15.emsl.pnl.gov
Numbers of cpus used for calculation = 32
Calculation walltime = 7767.600000 seconds (0 days 2 hours 9 minutes 27 seconds)
+----------------+
| Energetic Data |
+----------------+
Id = 78479
iupac = N#[Eu] septet radical
mformula = Eu1N1
inchi = InChI=1S/Eu.N
inchikey = PSBUJOCDKOWAGJ-UHFFFAOYSA-N
esmiles = N#[Eu] theory{pspw4} xc{pbe} basis{100.0 Ry} solvation_type{None} ^{0} mult{7}
calculation_type = ov
theory = pspw4
xc = pbe
basis = 100.0 Ry
charge,mult = 0 7
energy = -112.991398 Hartrees
enthalpy correct.= 0.006369 Hartrees
entropy = 55.440 cal/mol-K
solvation energy = 0.000 kcal/mol solvation_type = None
Sitkoff cavity dispersion = 0.000 kcal/mol
Honig cavity dispersion = 0.000 kcal/mol
ASA solvent accesible surface area = 0.000 Angstrom2
ASA solvent accesible volume = 0.000 Angstrom3
+-----------------+
| Structural Data |
+-----------------+
JSmol: an open-source HTML5 viewer for chemical structures in 3D
Number of Atoms = 2
Units are Angstrom for bonds and degrees for angles
Type I J K L M Value
----------- ----- ----- ----- ----- ----- ----------
+-----------------+
| Eigenvalue Data |
+-----------------+
Id = 78479
iupac = N#[Eu] septet radical
mformula = Eu1N1
InChI = InChI=1S/Eu.N
smiles = N#[Eu]
esmiles = N#[Eu] theory{pspw4} xc{pbe} basis{100.0 Ry} solvation_type{None} ^{0} mult{7}
theory = pspw4
xc = pbe
basis = 100.0 Ry
charge = 0
mult = 7
solvation_type = None
twirl webpage = TwirlMol Link
image webpage = GIF Image Link

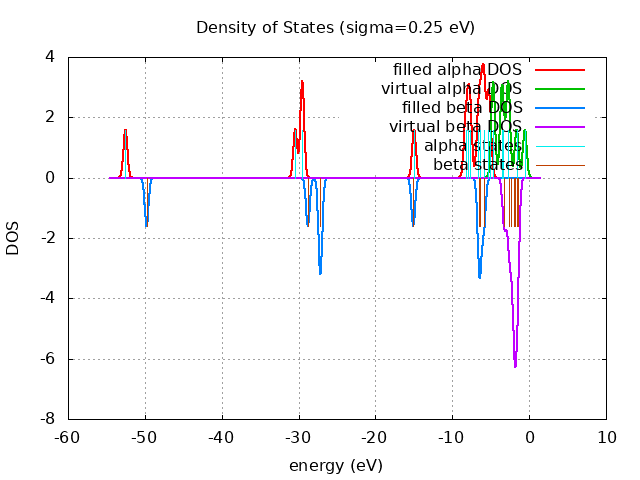

Unrestricted Eigevalue Spectra
alpha beta
---------- -0.56 eV
---------- - - - - -- -1.50 eV
---- ---- ---- ----
---- ---- ----------LUMO= -3.22 eV
HOMO= -5.12 eV*** ** ***LUMO= -4.70 eV
++ ++ ++ + HOMO= -5.90 eV++++++++++
++++++++++ ++++ ++++
+++ ++ +++
++++++++++ ++++++++++
++++ ++++
++++ ++++ ++++++++++
++++++++++
-49.77 eV++++++++++
-52.53 eV++++++++++
spin eig occ ---------------------------- alpha -5.12 1.00 alpha -5.36 1.00 alpha -5.92 1.00 alpha -5.93 1.00 alpha -6.35 1.00 alpha -6.62 1.00 alpha -7.66 1.00 alpha -7.91 1.00 alpha -8.28 1.00 alpha -14.97 1.00 alpha -29.52 1.00 alpha -29.52 1.00 alpha -30.43 1.00 alpha -52.53 1.00 alpha -0.56 0.00 alpha -1.63 0.00 alpha -2.72 0.00 alpha -2.75 0.00 alpha -3.44 0.00 alpha -3.59 0.00 alpha -4.67 0.00 alpha -4.70 0.00 beta -5.90 1.00 beta -6.44 1.00 beta -6.47 1.00 beta -15.08 1.00 beta -27.17 1.00 beta -27.17 1.00 beta -28.78 1.00 beta -49.77 1.00 beta -1.50 0.00 beta -1.55 0.00 beta -1.82 0.00 beta -1.91 0.00 beta -1.94 0.00 beta -2.35 0.00 beta -2.64 0.00 beta -3.22 0.00

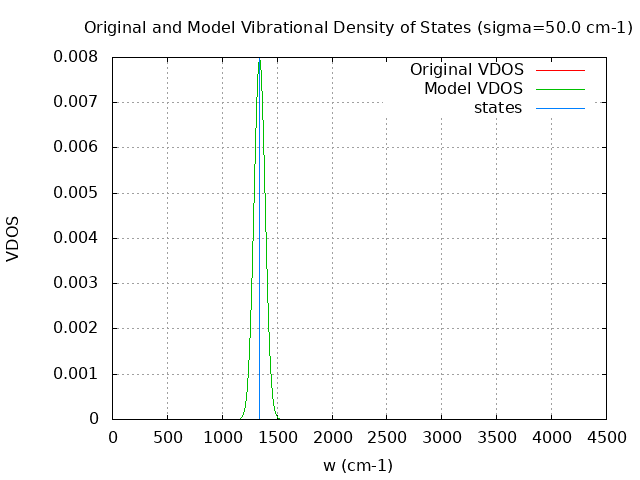

+----------------------------------------+ | Vibrational Density of States Analysis | +----------------------------------------+ Total number of frequencies = 6 Total number of negative frequencies = 0 Number of lowest frequencies = 0 (frequency threshold = 500 ) Exact dos norm = 0.000 Generating vibrational DOS Generating model vibrational DOS to have a proper norm 10.00 1.00 0.00 1.00 50.00 1.00 0.00 1.00 100.00 1.00 0.00 1.00 Generating IR Spectra Writing vibrational density of states (DOS) to vdos.dat Writing model vibrational density of states (DOS_FIXED) to vdos-model.dat Writing IR spectra to irdos.dat Temperature= 298.15 zero-point correction to energy = 1.918 kcal/mol ( 0.003056) vibrational contribution to enthalpy correction = 1.924 kcal/mol ( 0.003066) vibrational contribution to Entropy = 0.023 cal/mol-k hindered rotor enthalpy correction = 0.000 kcal/mol ( 0.000000) hindered rotor entropy correction = 0.000 cal/mol-k
DOS sigma = 10.000000
- vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- model vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- vibrational DOS Entropy = 0.000000 ( 0.023 cal/mol-k)
- model vibrational DOS Entropy = 0.000000 ( 0.023 cal/mol-k)
- original gas Energy = -112.991398 (-70903.172 kcal/mol)
- original gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- model DOS gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- original gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- model DOS gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- original gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- model DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- original sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- unadjusted DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- model DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)
DOS sigma = 50.000000
- vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- model vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- vibrational DOS Entropy = 0.000000 ( 0.023 cal/mol-k)
- model vibrational DOS Entropy = 0.000000 ( 0.023 cal/mol-k)
- original gas Energy = -112.991398 (-70903.172 kcal/mol)
- original gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- model DOS gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- original gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- model DOS gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- original gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- model DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- original sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- unadjusted DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- model DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)
DOS sigma = 100.000000
- vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- model vibrational DOS enthalpy correction = 0.003066 kcal/mol ( 1.924 kcal/mol)
- vibrational DOS Entropy = 0.000000 ( 0.025 cal/mol-k)
- model vibrational DOS Entropy = 0.000000 ( 0.025 cal/mol-k)
- original gas Energy = -112.991398 (-70903.172 kcal/mol)
- original gas Enthalpy = -112.985029 (-70899.176 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -112.985029 (-70899.175 kcal/mol, delta= 0.000)
- model DOS gas Enthalpy = -112.985029 (-70899.175 kcal/mol, delta= 0.000)
- original gas Entropy = 0.000088 ( 55.440 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000088 ( 55.442 cal/mol-k,delta= 0.002)
- model DOS gas Entropy = 0.000088 ( 55.442 cal/mol-k,delta= 0.002)
- original gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- model DOS gas Free Energy = -113.011371 (-70915.705 kcal/mol, delta= -0.000)
- original sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- unadjusted DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)
- model DOS sol Free Energy = -113.011371 (-70915.705 kcal/mol)

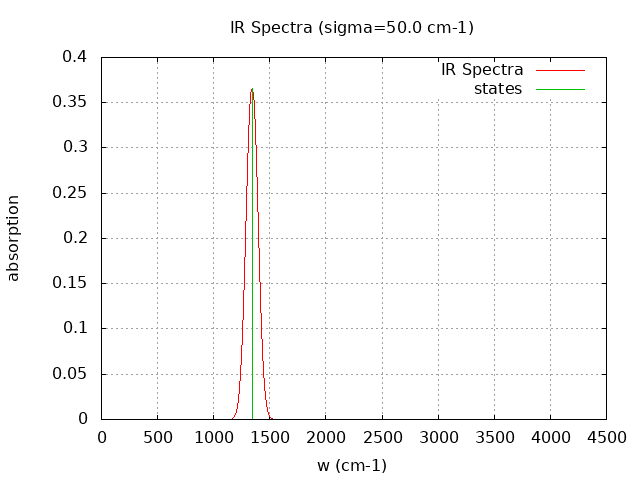

Normal Mode Frequency (cm-1) IR Intensity (arbitrary)
----------- ---------------- ------------------------
1 -0.000 0.514
2 0.000 0.101
3 0.000 0.101
4 0.000 6.886
5 0.000 6.621
6 1342.190 45.778
No Hindered Rotor Data
+-------------------------------------+
| Reactions Contained in the Database |
+-------------------------------------+
Reactions Containing INCHIKEY = PSBUJOCDKOWAGJ-UHFFFAOYSA-N
Reactionid Erxn(gas) Hrxn(gas) Grxn(gas) delta_Solv Grxn(aq) ReactionType Reaction
17023 42.042 40.919 38.149 0.000 38.149 AB + C --> AC + B "[Eu+] mult{7} theory{pspw4} + [N][N]=O theory{pspw4} --> [Eu][N] mult{7} theory{pspw4} + [N+]=O theory{pspw4}"
16874 49013.792 49012.299 49009.421 0.000 49009.421 AB + C --> AC + B "[Eu+] mult{7} theory{pspw4} + [N][N]=O theory{pspw4} --> [Eu][N] mult{7} theory{pspw4} + [N+]=O theory{pspw4}"
12992 -1513.660 -1515.153 -1518.031 0.000 -1518.031 AB + C --> AC + B "[Eu+] mult{7} theory{pspw4} + [N][N]=O theory{pspw4} --> [Eu][N] mult{7} theory{pspw4} + [N+]=O theory{pspw4}"
4933 212.158 209.056 205.838 -21.075 184.763 AB + C --> AC + B "[Eu+] mult{7} xc{m06-2x} + [N][N]=O xc{m06-2x} --> [Eu][N] mult{7} xc{m06-2x} + [N+]=O xc{m06-2x}"
3657 188.232 185.082 181.932 -59.685 122.248 AB + C --> AC + B "[Eu+] mult{7} xc{pbe0} + [N][N]=O xc{pbe0} --> [Eu][N] mult{7} xc{pbe0} + [N+]=O xc{pbe0}"
3656 142.272 139.170 135.952 48.875 184.827 AB + C --> AC + B "[Eu+] mult{7} xc{m06-2x} + [N][N]=O xc{m06-2x} --> [Eu][N] mult{7} xc{m06-2x} + [N+]=O xc{m06-2x}"
3655 166.861 163.859 160.842 -41.145 119.697 AB + C --> AC + B "[Eu+] mult{7} xc{b3lyp} + [N][N]=O xc{b3lyp} --> [Eu][N] mult{7} xc{b3lyp} + [N+]=O xc{b3lyp}"
3654 153.992 152.060 149.153 -37.087 112.067 AB + C --> AC + B "[Eu+] mult{7} xc{pbe} + [N][N]=O xc{pbe} --> [Eu][N] mult{7} xc{pbe} + [N+]=O xc{pbe}"
3512 -1513.663 -1514.489 -1520.055 0.000 -1520.055 AB + C --> AC + B "[Eu+] mult{7} theory{pspw4} + [N][N]=O theory{pspw4} --> [Eu][N] mult{7} theory{pspw4} + [N+]=O theory{pspw4}"
