The id(s) for emsiles = O=C1CC=C(C(=C1)N(=O)=O)O theory{dft} xc{b3lyp} basis{6-311++G(2d,2p)} solvation_type{COSMO} ^{0} are: 72576
Use id=% instead of esmiles to print other entries.
mformula = C6H5N1O4
iupac = O=C1CC=C(C(=C1)N(=O)=O)O
Search Links to Other Online Resources (may not be available):
- Google Structure Search
- EPA CompTox Database
- Chemical Entities of Biological Interest (ChEBI)
- NIH ChemIDplus - A TOXNET DATABASE
- The Human Metabolome Database (HMDB)
- OECD eChemPortal
- Google Scholar
+==================================================+
|| Molecular Calculation ||
+==================================================+
Id = 72576
NWOutput = Link to NWChem Output (download)
Datafiles:
homo-restricted.cube-385785-2022-4-11-12:37:2 (download)
lumo-restricted.cube-385785-2022-4-11-12:37:2 (download)
cosmo.xyz-385785-2022-4-11-12:37:2 (download)
mo_orbital_nwchemarrows-2025-9-2-20-1-191356.out-79398-2025-9-2-14:0:57 (download)
image_resset: api/image_reset/72576
Calculation performed by Eric Bylaska - arrow4.emsl.pnl.gov
Numbers of cpus used for calculation = 32
Calculation walltime = 18339.900000 seconds (0 days 5 hours 5 minutes 39 seconds)
+----------------+
| Energetic Data |
+----------------+
Id = 72576
iupac = O=C1CC=C(C(=C1)N(=O)=O)O
mformula = C6H5N1O4
inchi = InChI=1S/C6H5NO4/c8-4-1-2-6(9)5(3-4)7(10)11/h2-3,9H,1H2
inchikey = SBXKONJEUHDBSX-UHFFFAOYSA-N
esmiles = O=C1CC=C(C(=C1)N(=O)=O)O theory{dft} xc{b3lyp} basis{6-311++G(2d,2p)} solvation_type{COSMO} ^{0}
calculation_type = ovc
theory = dft
xc = b3lyp
basis = 6-311++G(2d,2p)
charge,mult = 0 1
energy = -587.350092 Hartrees
enthalpy correct.= 0.119009 Hartrees
entropy = 92.289 cal/mol-K
solvation energy = -16.912 kcal/mol solvation_type = COSMO
Sitkoff cavity dispersion = 2.428 kcal/mol
Honig cavity dispersion = 7.838 kcal/mol
ASA solvent accesible surface area = 313.508 Angstrom2
ASA solvent accesible volume = 295.231 Angstrom3
+-----------------+
| Structural Data |
+-----------------+
JSmol: an open-source HTML5 viewer for chemical structures in 3D
Number of Atoms = 16
Units are Angstrom for bonds and degrees for angles
Type I J K L M Value
----------- ----- ----- ----- ----- ----- ----------
1 Stretch O1 C2 1.21562
2 Stretch C2 C4 1.52351
3 Stretch C2 C8 1.47017
4 Stretch H3 C4 1.09567
5 Stretch C4 C5 1.49583
6 Stretch C4 H13 1.09378
7 Stretch C5 C6 1.33825
8 Stretch C5 H14 1.08321
9 Stretch C6 C7 1.45839
10 Stretch C6 O12 1.36138
11 Stretch C7 C8 1.33824
12 Stretch C7 N9 1.48147
13 Stretch C8 H15 1.07998
14 Stretch N9 O10 1.21909
15 Stretch N9 O11 1.21841
16 Stretch O12 H16 0.96219
17 Bend O1 C2 C4 121.38865
18 Bend O1 C2 C8 121.41332
19 Bend C4 C2 C8 117.19703
20 Bend C2 C4 H3 106.58127
21 Bend C2 C4 C5 116.76399
22 Bend C2 C4 H13 107.13952
23 Bend H3 C4 C5 110.29226
24 Bend H3 C4 H13 104.63478
25 Bend C5 C4 H13 110.66019
26 Bend C4 C5 C6 122.09597
27 Bend C4 C5 H14 117.98262
28 Bend C6 C5 H14 119.92104
29 Bend C5 C6 C7 119.19836
30 Bend C5 C6 O12 126.61476
31 Bend C7 C6 O12 114.16834
32 Bend C6 C7 C8 124.52313
33 Bend C6 C7 N9 116.80330
34 Bend C8 C7 N9 118.66491
35 Bend C2 C8 C7 120.09019
36 Bend C2 C8 H15 117.88794
37 Bend C7 C8 H15 122.02156
38 Bend C7 N9 O10 117.20757
39 Bend C7 N9 O11 116.04570
40 Bend O10 N9 O11 126.74031
41 Bend C6 O12 H16 110.13712
42 Dihedral O1 C2 C4 H3 59.86472
43 Dihedral O1 C2 C4 C5 -176.39378
44 Dihedral O1 C2 C4 H13 -51.70896
45 Dihedral O1 C2 C8 C7 178.56472
46 Dihedral O1 C2 C8 H15 -1.23781
47 Dihedral C2 C4 C5 C6 -3.51601
48 Dihedral C2 C4 C5 H14 176.26251
49 Dihedral C2 C8 C7 C6 -1.17498
50 Dihedral C2 C8 C7 N9 177.71833
51 Dihedral H3 C4 C2 C8 -119.77660
52 Dihedral H3 C4 C5 C6 118.30393
53 Dihedral H3 C4 C5 H14 -61.91755
54 Dihedral C4 C2 C8 C7 -1.79405
55 Dihedral C4 C2 C8 H15 178.40342
56 Dihedral C4 C5 C6 C7 0.71606
57 Dihedral C4 C5 C6 O12 179.05277
58 Dihedral C5 C4 C2 C8 3.96490
59 Dihedral C5 C6 C7 C8 1.82416
60 Dihedral C5 C6 C7 N9 -177.08790
61 Dihedral C5 C6 O12 H16 0.58988
62 Dihedral C6 C5 C4 H13 -126.39872
63 Dihedral C6 C7 C8 H15 178.61917
64 Dihedral C6 C7 N9 O10 -108.92238
65 Dihedral C6 C7 N9 O11 71.93588
66 Dihedral C7 C6 C5 H14 -179.05827
67 Dihedral C7 C6 O12 H16 178.99845
68 Dihedral C8 C2 C4 H13 128.64972
69 Dihedral C8 C7 C6 O12 -176.71255
70 Dihedral C8 C7 N9 O10 72.09917
71 Dihedral C8 C7 N9 O11 -107.04258
72 Dihedral N9 C7 C6 O12 4.37539
73 Dihedral N9 C7 C8 H15 -2.48753
74 Dihedral O12 C6 C5 H14 -0.72157
75 Dihedral H13 C4 C5 H14 53.37980
+-----------------+
| Eigenvalue Data |
+-----------------+
Id = 72576
iupac = O=C1CC=C(C(=C1)N(=O)=O)O
mformula = C6H5N1O4
InChI = InChI=1S/C6H5NO4/c8-4-1-2-6(9)5(3-4)7(10)11/h2-3,9H,1H2
smiles = O=C1CC=C(C(=C1)N(=O)=O)O
esmiles = O=C1CC=C(C(=C1)N(=O)=O)O theory{dft} xc{b3lyp} basis{6-311++G(2d,2p)} solvation_type{COSMO} ^{0}
theory = dft
xc = b3lyp
basis = 6-311++G(2d,2p)
charge = 0
mult = 1
solvation_type = COSMO
twirl webpage = TwirlMol Link
image webpage = GIF Image Link

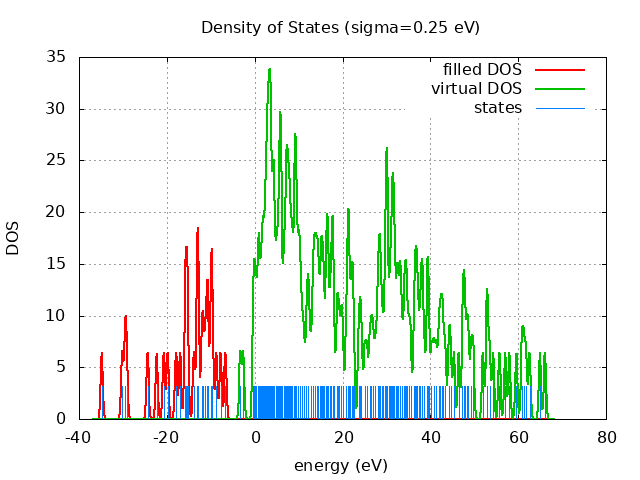

Eigevalue Spectra
---------- 66.09 eV
----------
--- -- ---
---- ----
---- ----
----------
-- -- -- -
----------
--- -- ---
-- -- -- -
--- -- ---
-- -- -- -
-- -- -- -
- - - - --
8 - - - -
- - - - --
6 - - - -
10 - - - -
8 - - - -
- - - - --
-- -- -- -
-- -- -- -
6 - - - -
7 - - - -
7 - - - -
9 - - - -
6 - - - -
6 - - - -
12 - - - -
12 - - - -
12 - - - -
12 - - - -
7 - - - -
----------
---------- LUMO= -3.27 eV
HOMO= -6.67 eV ++++++++++
++++ ++++
+ + + + ++
6 + + + +
++++ ++++
++ ++ ++ +
++++++++++
++++ ++++
++++++++++
++++++++++
++++ ++++
++++++++++
-34.82 eV ++++++++++
spin eig occ ---------------------------- restricted -34.82 2.00 restricted -30.19 2.00 restricted -29.53 2.00 restricted -29.18 2.00 restricted -24.38 2.00 restricted -22.30 2.00 restricted -20.70 2.00 restricted -19.84 2.00 restricted -17.92 2.00 restricted -16.99 2.00 restricted -15.85 2.00 restricted -15.70 2.00 restricted -15.39 2.00 restricted -15.24 2.00 restricted -13.82 2.00 restricted -13.05 2.00 restricted -12.93 2.00 restricted -12.89 2.00 restricted -12.03 2.00 restricted -11.69 2.00 restricted -11.20 2.00 restricted -10.79 2.00 restricted -10.64 2.00 restricted -9.97 2.00 restricted -9.80 2.00 restricted -9.62 2.00 restricted -8.73 2.00 restricted -7.76 2.00 restricted -6.67 2.00 restricted -3.27 0.00 restricted -2.61 0.00 restricted -0.30 0.00 restricted -0.18 0.00 restricted 0.17 0.00 restricted 0.37 0.00 restricted 0.81 0.00 restricted 0.88 0.00 restricted 1.13 0.00 restricted 1.45 0.00 restricted 1.66 0.00 restricted 1.89 0.00 restricted 2.03 0.00 restricted 2.30 0.00 restricted 2.51 0.00 restricted 2.63 0.00 restricted 2.75 0.00 restricted 2.94 0.00 restricted 3.06 0.00 restricted 3.13 0.00 restricted 3.27 0.00 restricted 3.43 0.00 restricted 3.51 0.00 restricted 3.62 0.00 restricted 3.69 0.00 restricted 3.90 0.00 restricted 4.17 0.00 restricted 4.24 0.00 restricted 4.42 0.00 restricted 4.50 0.00 restricted 4.84 0.00 restricted 5.06 0.00 restricted 5.24 0.00 restricted 5.50 0.00 restricted 5.72 0.00 restricted 5.80 0.00 restricted 5.87 0.00 restricted 6.02 0.00 restricted 6.12 0.00 restricted 6.57 0.00 restricted 6.71 0.00 restricted 7.00 0.00 restricted 7.18 0.00 restricted 7.31 0.00 restricted 7.37 0.00 restricted 7.64 0.00 restricted 7.71 0.00 restricted 7.91 0.00 restricted 8.11 0.00 restricted 8.25 0.00 restricted 8.58 0.00 restricted 8.61 0.00 restricted 9.02 0.00 restricted 9.15 0.00 restricted 9.27 0.00 restricted 9.39 0.00 restricted 9.45 0.00 restricted 9.83 0.00 restricted 9.97 0.00 restricted 10.24 0.00 restricted 10.39 0.00 restricted 10.78 0.00 restricted 11.16 0.00 restricted 11.70 0.00 restricted 12.10 0.00 restricted 12.24 0.00 restricted 12.72 0.00 restricted 13.26 0.00 restricted 13.35 0.00 restricted 13.70 0.00 restricted 13.82 0.00 restricted 14.10 0.00 restricted 14.33 0.00 restricted 14.50 0.00 restricted 14.84 0.00 restricted 15.15 0.00 restricted 15.27 0.00 restricted 15.57 0.00 restricted 15.75 0.00 restricted 16.21 0.00 restricted 16.46 0.00 restricted 16.56 0.00 restricted 16.76 0.00 restricted 17.16 0.00 restricted 17.43 0.00 restricted 17.74 0.00 restricted 17.76 0.00 restricted 18.01 0.00 restricted 18.67 0.00 restricted 18.95 0.00 restricted 19.30 0.00 restricted 19.73 0.00 restricted 20.04 0.00 restricted 20.77 0.00 restricted 21.18 0.00 restricted 21.32 0.00 restricted 21.38 0.00 restricted 21.74 0.00 restricted 22.07 0.00 restricted 22.28 0.00 restricted 22.55 0.00 restricted 23.67 0.00 restricted 24.01 0.00 restricted 24.32 0.00 restricted 25.04 0.00 restricted 25.56 0.00 restricted 26.18 0.00 restricted 26.60 0.00 restricted 26.98 0.00 restricted 27.49 0.00 restricted 27.98 0.00 restricted 28.22 0.00 restricted 28.45 0.00 restricted 28.61 0.00 restricted 28.91 0.00 restricted 29.31 0.00 restricted 29.72 0.00 restricted 29.98 0.00 restricted 30.00 0.00 restricted 30.16 0.00 restricted 30.23 0.00 restricted 30.66 0.00 restricted 30.92 0.00 restricted 31.15 0.00 restricted 31.35 0.00 restricted 31.52 0.00 restricted 31.60 0.00 restricted 31.81 0.00 restricted 32.08 0.00 restricted 32.49 0.00 restricted 32.57 0.00 restricted 33.03 0.00 restricted 33.15 0.00 restricted 33.49 0.00 restricted 33.96 0.00 restricted 34.24 0.00 restricted 34.47 0.00 restricted 34.74 0.00 restricted 35.15 0.00 restricted 35.55 0.00 restricted 36.30 0.00 restricted 36.51 0.00 restricted 36.82 0.00 restricted 36.94 0.00 restricted 37.32 0.00 restricted 37.72 0.00 restricted 38.07 0.00 restricted 38.16 0.00 restricted 38.59 0.00 restricted 39.22 0.00 restricted 39.42 0.00 restricted 39.62 0.00 restricted 40.25 0.00 restricted 40.78 0.00 restricted 41.30 0.00 restricted 41.87 0.00 restricted 42.24 0.00 restricted 42.57 0.00 restricted 42.89 0.00 restricted 43.38 0.00 restricted 44.20 0.00 restricted 44.62 0.00 restricted 45.38 0.00 restricted 46.47 0.00 restricted 47.32 0.00 restricted 47.62 0.00 restricted 47.82 0.00 restricted 48.29 0.00 restricted 48.65 0.00 restricted 49.29 0.00 restricted 49.77 0.00 restricted 51.96 0.00 restricted 52.84 0.00 restricted 52.98 0.00 restricted 53.53 0.00 restricted 54.31 0.00 restricted 55.74 0.00 restricted 57.05 0.00 restricted 57.99 0.00 restricted 59.59 0.00 restricted 60.83 0.00 restricted 61.25 0.00 restricted 61.76 0.00 restricted 62.58 0.00 restricted 64.96 0.00 restricted 66.09 0.00

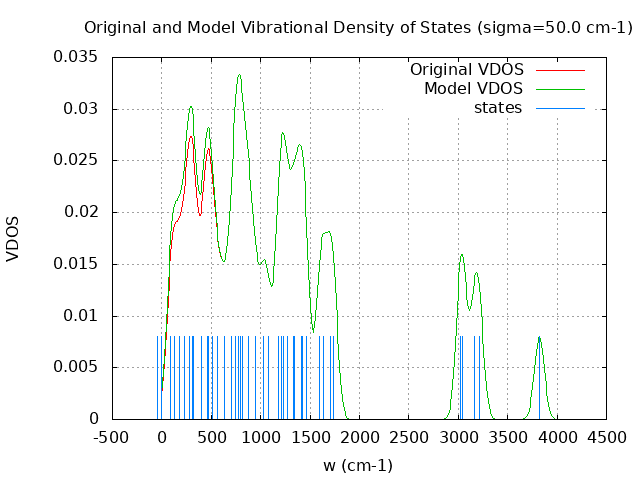

+----------------------------------------+ | Vibrational Density of States Analysis | +----------------------------------------+ Total number of frequencies = 48 Total number of negative frequencies = 1 - w_negative = -44.6 cm-1 Number of lowest frequencies = 10 (frequency threshold = 500 ) Exact dos norm = 42.000 Generating vibrational DOS Generating model vibrational DOS to have a proper norm 10.00 40.99 10.00 42.00 50.00 40.95 9.95 42.00 100.00 40.64 9.64 42.00 Generating IR Spectra Writing vibrational density of states (DOS) to vdos.dat Writing model vibrational density of states (DOS_FIXED) to vdos-model.dat Writing IR spectra to irdos.dat Temperature= 298.15 zero-point correction to energy = 68.586 kcal/mol ( 0.109298) vibrational contribution to enthalpy correction = 72.310 kcal/mol ( 0.115234) vibrational contribution to Entropy = 21.235 cal/mol-k hindered rotor enthalpy correction = 0.000 kcal/mol ( 0.000000) hindered rotor entropy correction = 0.000 cal/mol-k
DOS sigma = 10.000000
- vibrational DOS enthalpy correction = 0.115236 kcal/mol ( 72.312 kcal/mol)
- model vibrational DOS enthalpy correction = 0.116358 kcal/mol ( 73.016 kcal/mol)
- vibrational DOS Entropy = 0.000034 ( 21.269 cal/mol-k)
- model vibrational DOS Entropy = 0.000037 ( 23.051 cal/mol-k)
- original gas Energy = -587.350092 (-368567.744 kcal/mol)
- original gas Enthalpy = -587.231083 (-368493.065 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -587.231081 (-368493.064 kcal/mol, delta= 0.001)
- model DOS gas Enthalpy = -587.229959 (-368492.360 kcal/mol, delta= 0.706)
- original gas Entropy = 0.000147 ( 92.289 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000147 ( 92.324 cal/mol-k,delta= 0.035)
- model DOS gas Entropy = 0.000150 ( 94.105 cal/mol-k,delta= 1.816)
- original gas Free Energy = -587.274933 (-368520.581 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -587.274947 (-368520.590 kcal/mol, delta= -0.009)
- model DOS gas Free Energy = -587.274671 (-368520.417 kcal/mol, delta= 0.164)
- original sol Free Energy = -587.301884 (-368537.494 kcal/mol)
- unadjusted DOS sol Free Energy = -587.301899 (-368537.503 kcal/mol)
- model DOS sol Free Energy = -587.301623 (-368537.330 kcal/mol)
DOS sigma = 50.000000
- vibrational DOS enthalpy correction = 0.115250 kcal/mol ( 72.320 kcal/mol)
- model vibrational DOS enthalpy correction = 0.116428 kcal/mol ( 73.060 kcal/mol)
- vibrational DOS Entropy = 0.000035 ( 22.075 cal/mol-k)
- model vibrational DOS Entropy = 0.000038 ( 24.025 cal/mol-k)
- original gas Energy = -587.350092 (-368567.744 kcal/mol)
- original gas Enthalpy = -587.231083 (-368493.065 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -587.231067 (-368493.055 kcal/mol, delta= 0.010)
- model DOS gas Enthalpy = -587.229889 (-368492.316 kcal/mol, delta= 0.749)
- original gas Entropy = 0.000147 ( 92.289 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000148 ( 93.130 cal/mol-k,delta= 0.841)
- model DOS gas Entropy = 0.000152 ( 95.079 cal/mol-k,delta= 2.790)
- original gas Free Energy = -587.274933 (-368520.581 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -587.275316 (-368520.822 kcal/mol, delta= -0.240)
- model DOS gas Free Energy = -587.275064 (-368520.664 kcal/mol, delta= -0.083)
- original sol Free Energy = -587.301884 (-368537.494 kcal/mol)
- unadjusted DOS sol Free Energy = -587.302268 (-368537.734 kcal/mol)
- model DOS sol Free Energy = -587.302016 (-368537.576 kcal/mol)
DOS sigma = 100.000000
- vibrational DOS enthalpy correction = 0.115146 kcal/mol ( 72.255 kcal/mol)
- model vibrational DOS enthalpy correction = 0.116688 kcal/mol ( 73.223 kcal/mol)
- vibrational DOS Entropy = 0.000035 ( 22.189 cal/mol-k)
- model vibrational DOS Entropy = 0.000039 ( 24.767 cal/mol-k)
- original gas Energy = -587.350092 (-368567.744 kcal/mol)
- original gas Enthalpy = -587.231083 (-368493.065 kcal/mol, delta= 0.000)
- unajusted DOS gas Enthalpy = -587.231171 (-368493.120 kcal/mol, delta= -0.055)
- model DOS gas Enthalpy = -587.229628 (-368492.152 kcal/mol, delta= 0.913)
- original gas Entropy = 0.000147 ( 92.289 cal/mol-k,delta= 0.000)
- unajusted DOS gas Entropy = 0.000149 ( 93.243 cal/mol-k,delta= 0.954)
- model DOS gas Entropy = 0.000153 ( 95.821 cal/mol-k,delta= 3.532)
- original gas Free Energy = -587.274933 (-368520.581 kcal/mol, delta= 0.000)
- unadjusted DOS gas Free Energy = -587.275474 (-368520.921 kcal/mol, delta= -0.340)
- model DOS gas Free Energy = -587.275156 (-368520.721 kcal/mol, delta= -0.140)
- original sol Free Energy = -587.301884 (-368537.494 kcal/mol)
- unadjusted DOS sol Free Energy = -587.302426 (-368537.833 kcal/mol)
- model DOS sol Free Energy = -587.302108 (-368537.634 kcal/mol)

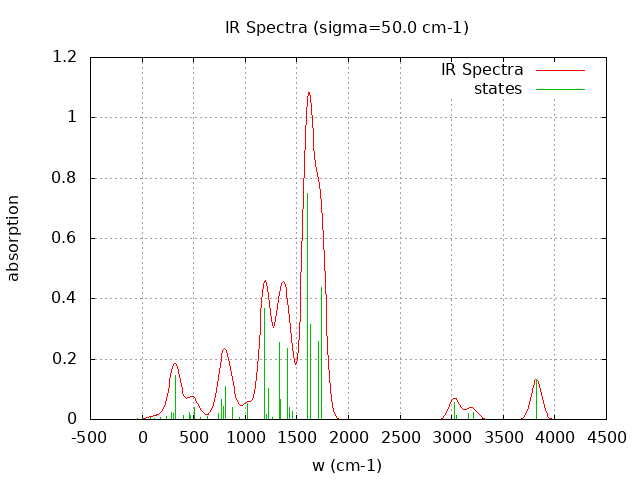

Normal Mode Frequency (cm-1) IR Intensity (arbitrary)
----------- ---------------- ------------------------
1 -44.590 0.508
2 -0.000 0.437
3 0.000 0.062
4 0.000 0.274
5 0.000 0.507
6 0.000 0.290
7 0.000 0.307
8 84.450 0.720
9 123.470 0.574
10 182.530 0.798
11 232.270 1.387
12 281.450 2.788
13 306.550 2.369
14 323.590 18.254
15 402.020 1.738
16 458.570 3.068
17 468.480 1.726
18 509.160 5.127
19 566.980 0.674
20 633.910 1.077
21 707.840 0.123
22 742.020 2.634
23 771.000 8.209
24 790.920 5.392
25 812.510 13.881
26 875.250 5.030
27 880.620 2.329
28 948.480 0.804
29 1024.690 6.633
30 1077.140 0.192
31 1182.950 46.007
32 1205.830 1.922
33 1228.730 12.672
34 1268.400 0.976
35 1334.650 31.861
36 1342.700 8.510
37 1410.600 29.476
38 1424.190 4.940
39 1460.410 3.179
40 1599.490 94.056
41 1630.630 39.673
42 1708.530 32.609
43 1736.100 54.835
44 3023.820 7.216
45 3042.420 1.763
46 3162.260 2.672
47 3212.480 2.918
48 3821.250 16.800
No Hindered Rotor Data
+-------------------------------------+
| Reactions Contained in the Database |
+-------------------------------------+
Reactions Containing INCHIKEY = SBXKONJEUHDBSX-UHFFFAOYSA-N
Reactionid Erxn(gas) Hrxn(gas) Grxn(gas) delta_Solv Grxn(aq) ReactionType Reaction
All requests to Arrows were successful.
KEYWORDs -
reaction: :reaction
chinese_room: :chinese_room
molecule: :molecule
nmr: :nmr
predict: :predict
submitesmiles: :submitesmiles
nosubmitmissingesmiles
resubmitmissingesmiles
submitmachines: :submitmachines
useallentries
nomodelcorrect
eigenvalues: :eigenvalues
frequencies: :frequencies
nwoutput: :nwoutput
xyzfile: :xyzfile
alleigs: :alleigs
allfreqs: :allfreqs
reactionenumerate:
energytype:[erxn(gas) hrxn(gas) grxn(gas) delta_solvation grxn(aq)] :energytype
energytype:[kcal/mol kj/mol ev cm-1 ry hartree au] :energytype
tablereactions:
reaction: ... :reaction
reaction: ... :reaction
...
:tablereactions
tablemethods:
method: ... :method
method: ... :method
...
:tablemethods
:reactionenumerate
rotatebonds
xyzinput:
label: :label
xyzdata:
... xyz data ...
:xyzdata
:xyzinput
submitHf: :submitHf
nmrexp: :nmrexp
findreplace: old text | new text :findreplace
listnwjobs
fetchnwjob: :fetchnwjob
pushnwjob: :pushnwjob
printcsv: :printcsv
printeig: :printeig
printfreq: :printfreq
printxyz: :printxyz
printjobinfo: :printjobinfo
printnwout: :printnwout
badids: :badids
hup_string:
database:
table:
request_table:
listallesmiles
queuecheck
This software service and its documentation were developed at the Environmental Molecular Sciences Laboratory (EMSL) at Pacific Northwest National Laboratory, a multiprogram national laboratory, operated for the U.S. Department of Energy by Battelle under Contract Number DE-AC05-76RL01830. Support for this work was provided by the Department of Energy Office of Biological and Environmental Research, and Department of Defense environmental science and technology program (SERDP). THE SOFTWARE SERVICE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE SERVICE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE SERVICE.
